| Specifications | Unit | BTS10 | BTS15 | BTF20 | BTS25 | BTS30 | BTS35 | BTS40 | BTS45 | BTS50 | BTS60 | BTS80 | BTS100 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Test Properties | ||||||||||||||
| Weight | g/m2 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | 1000 | |
| Weight Variation | % | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 | -5 | |
| Thickness | mm | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 3.6 | 4.1 | 5 | 6 | |
| Mechanical Properties | Width Variation | % | -0.5 | |||||||||||
| Break Strength | KN/m | 2.5 | 4.5 | 6.5 | 8 | 9.5 | 11 | 12.5 | 14 | 16 | 19 | 25 | 40 | |
| Break Elongation | % | 25-100 | ||||||||||||
| CBR Burst Strength≥ | kN | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4 | 7 | |
| Tear Strength≥ | kN | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | 1 | |
| Hydraulic
Properties |
Sieve Size 090 | mm | 0.07-0.20 | |||||||||||
| Coefficient of Permeability | cm/s |

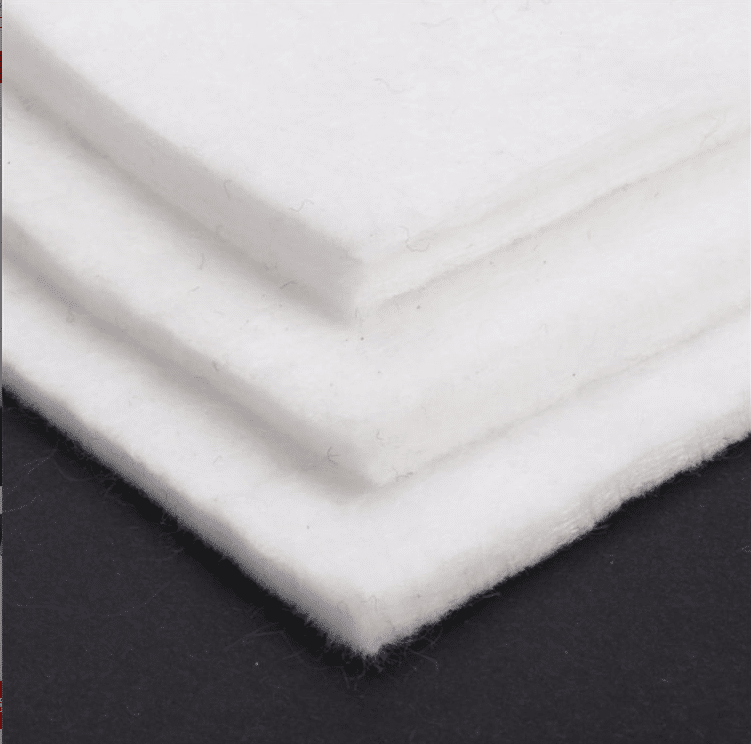

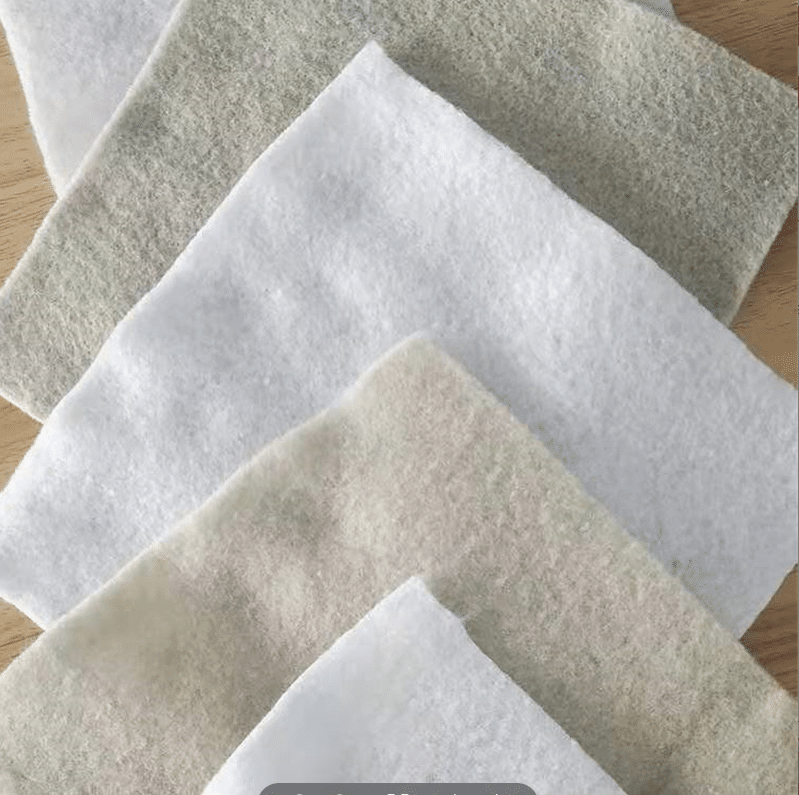

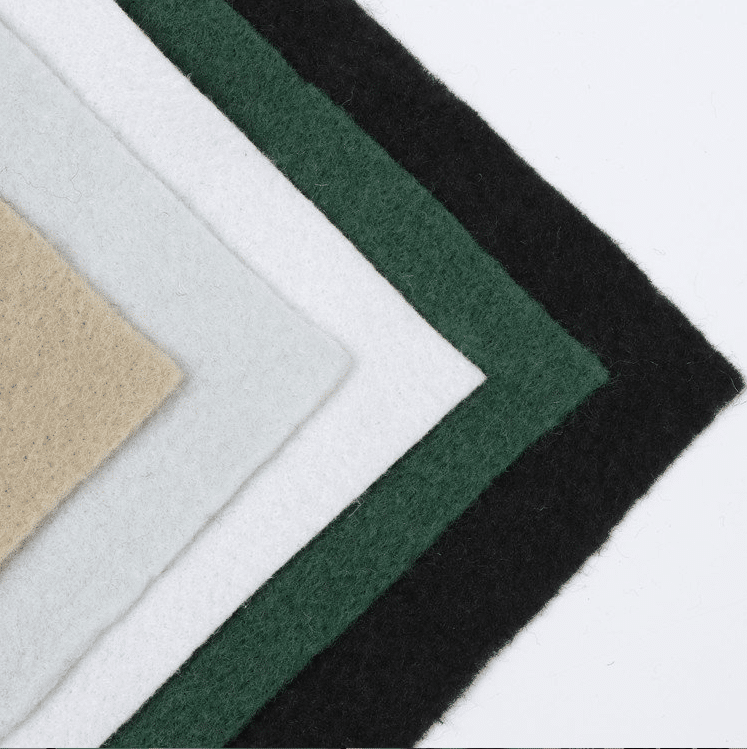

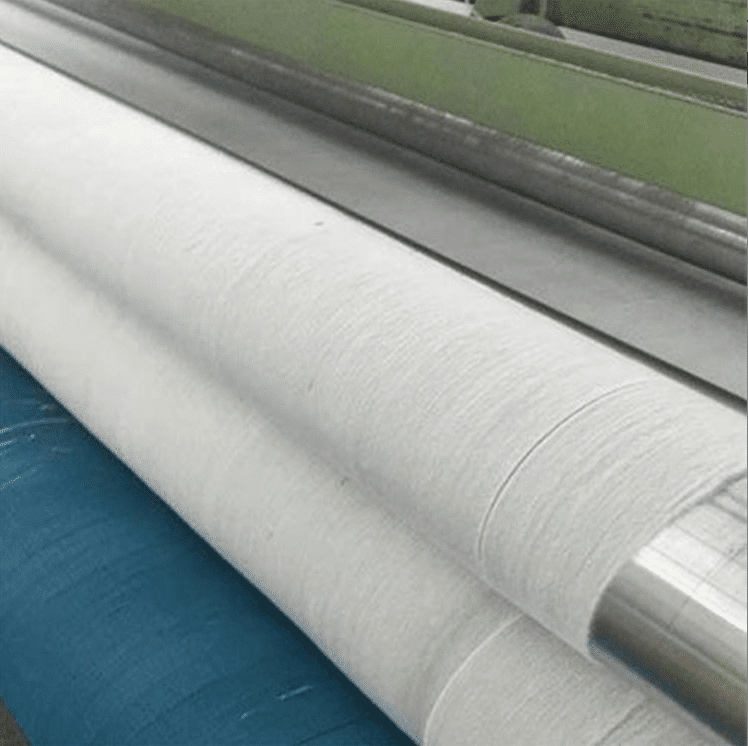

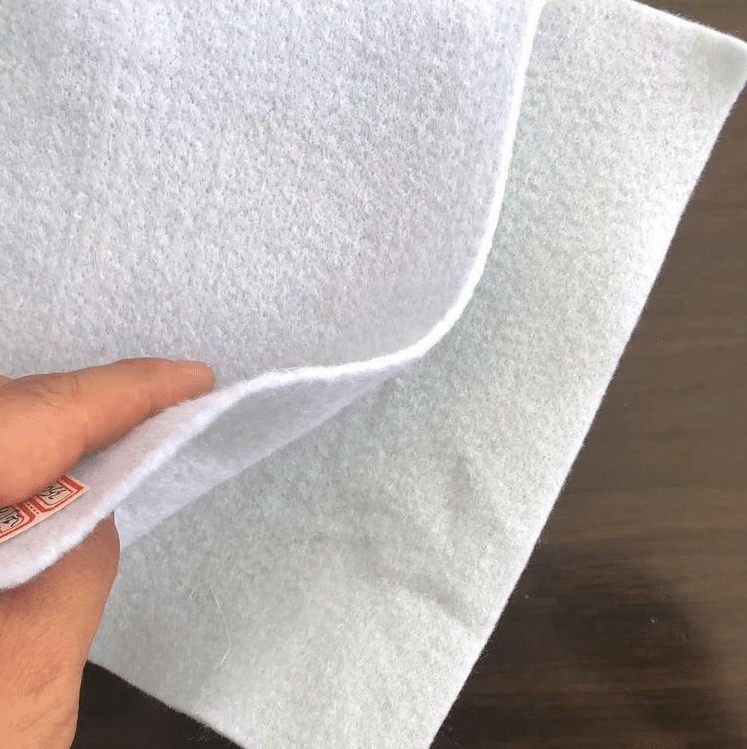

Short-fiber nonwoven geotextile is a versatile, permeable fabric manufactured by needle-punching randomly oriented polyester (PET) or polypropylene (PP) short fibers into a cohesive matrix. This structure provides excellent filtration, separation, drainage, and protection capabilities, making it a critical component in civil engineering, environmental projects, and infrastructure development.
Key Features
High Permeability: Facilitates efficient water flow while retaining soil particles.
Puncture & Tear Resistance: Withstands mechanical stress during installation and use.
Chemical Stability: Resistant to soil alkalinity, acidity, and biological degradation.
UV Resistance: Optional UV stabilization for prolonged outdoor exposure.
Lightweight & Flexible: Easy to cut, handle, and conform to irregular surfaces.
Primary Applications
Material: Polyester (PET) or Polypropylene (PP) short fibers.
Weight: 100–800 g/m² (customizable based on project needs).
Thickness: 1–5 mm (varies with density and fiber type).
Tensile Strength: 8–25 kN/m (machine and cross-machine directions).
