| Properties | BTW20-15 | BTW30-22 | BTW40-28 | BTW50-35 | BTW60-42 | BTW80-56 | BTW100-70 |
|---|---|---|---|---|---|---|---|
| Break Strength at MD kN/m | 20 | 30 | 40 | 50 | 60 | 80 | 100 |
| Break Strength at CD kN/m | 15 | 22 | 28.00 | 35 | 42 | 56 | 70 |
| Break Elongation % ≤ | 25% | ||||||
| Trapezoid Tear Strength KN ≥ | 0.2 | 0.27 | 0.34 | 0.41 | 0.48 | 0.6 | 0.72 |
| CBR Burst Strength kN ≥ | 1.6 | 2.4 | 3.2 | 4 | 4.8 | 6 | 7.5 |
| Vertical Permeability Coefficient cm/s | 10-1-10-3 | ||||||
| Sieve Size(095) mm | 0.08-0.5 | ||||||
| Unit Weight ,g/m2 | 120 | 160 | 200 | 240 | 280 | 340 | 400 |
| Variation,% | ±6 |

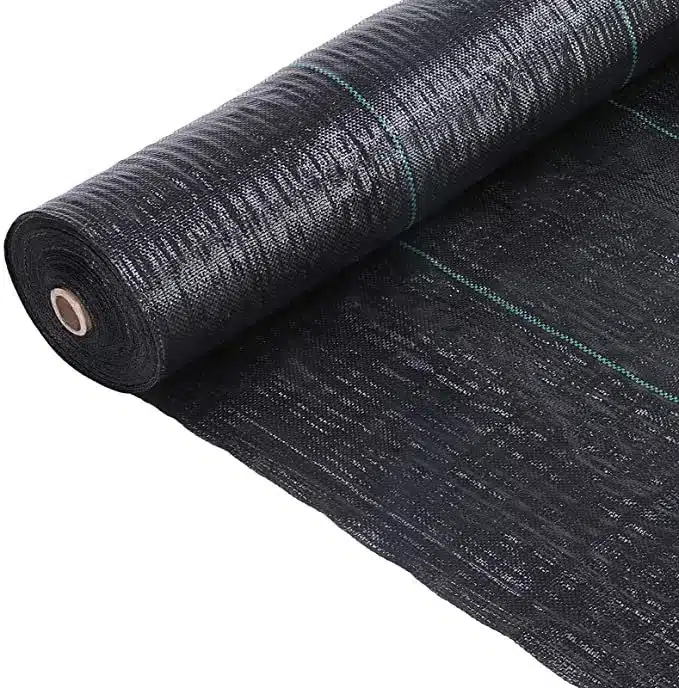

Polypropylene (PP) woven fabric, commonly referred to as PP woven geotextile or PP woven sheet, is a durable, lightweight material manufactured by interlacing polypropylene tapes in a warp-and-weft pattern. Renowned for its high tensile strength, puncture resistance, and cost-effectiveness, it is widely used in industrial, agricultural, and geotechnical applications. Its woven structure provides exceptional dimensional stability and load-bearing capacity, making it ideal for reinforcement, containment, and protection purposes.
