| Property | Unit | BC63/D200 | BC70/D200 | BC80/D200 | BC90/D200 | Test Standard |
|---|---|---|---|---|---|---|
| Geocomposite specification | ||||||
| Hydraulic Conductivity(MD) | M2/s | 2.8×10-3 | 3.2×10-3 | 4.0×10-3 | 5×10-3 | ASTM D4716 |
| Puncture Resistance | kN/m | 0.17 | 0.17 | 0.17 | 0.17 | ASTM D7005 |
| Core Material Geonet Specification | ||||||
| Thickness | mm | 6.3 | 7 | 8 | 9 | ASTM D5199 |
| Density | g/cm3 | 0.94 | 0.94 | 0.94 | 0.94 | ASTM D1505 |
| Carbon Black Content | % | 2 | 2 | 2 | 2 | ASTM D1603 |
| Tensile Strength (MD) | kN/m | 8 | 10 | 12 | 14 | ASTM D7179 |
| Hydraulic Conductivity(MD) | M2/s | 2.0×10-4 | ASTM D4716 | |||
| Geotextile Specification | ||||||
| Unit Weight | g/cm2 | 200 | 200 | 200 | 200 | 200 |
| Geotextile type | Continuous filament non-woven geotextile |

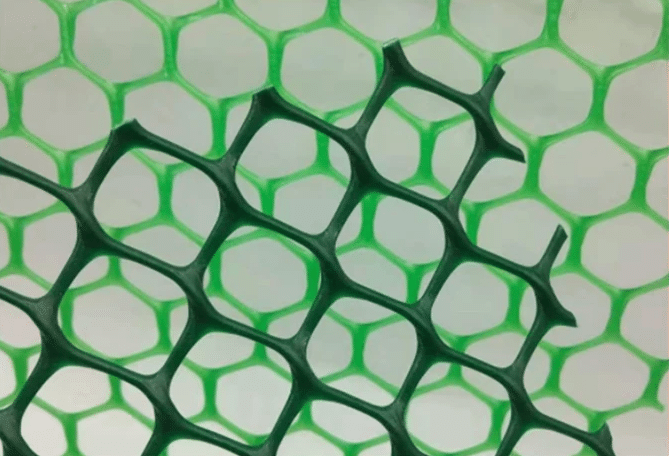

Geonet is a three-dimensional polymeric mesh engineered to provide superior drainage, soil stabilization, and load distribution in civil and environmental projects. Made from high-density polyethylene (HDPE) or polypropylene (PP), our geonet products deliver exceptional hydraulic performance and long-term durability in demanding conditions.
