Filament Nonwoven Geotextile

Specifications Test Method Unit BTF100 BTF150 BTF200 BTF250 BTF300 BTF350 BTF400 BTF450 BTF500 BTF600
Index Properties
Ultimate Tensile Strength, MD ASTM D4595 kN/m 7 11 14 17 19 24 27 30 37 41
Ultimate Tensile Strength, TD ASTM D4595 kN/m 6 10 12 15 17 21 25 28 34 38
Tensile Elongation ASTM D4595 % 45 45 50 50 50 60 60 60 60 60
Grab Tensile Strength, MD ASTM D4632 N 400 600 850 1000 1250 1450 1700 1900 2100 2500
Grab Tensile Strength, TD ASTM D4632 N 350 550 700 900 1100 1250 1450 1600 1800 2150
Grab Elongation ASTM D4632 % 45 45 50 50 50 60 60 60 60 60
Trapezoid Tear Strength, MD ASTM D4533 N 160 300 350 430 490 540 630 710 770 920
Trapezoid Tear Strength, TD ASTM D4533 N 140 270 330 400 450 510 610 690 750 900
CBR Puncture Strength ASTM D6241 N 1000 1800 2300 2700 3200 3600 4400 4800 5800 6900
Apparent Opening Size O90 ASTM D4751 mm 0.12 0.11 0.11 0.10 0.09 0.09 0.08 0.08 0.08 0.08
Water Flow Q100 ASTM D4491 L/m2 /s 250 235 220 200 185 165 125 110 90 80
Weight ASTM D5261 g/m2 100 150 200 250 300 350 400 450 500 600
Thickness ASTM D5199 mm 1.2 1.8 2.3 2.9 3.2 3.6 3.9 4.2 4.4 4.8
Roll Width m 6 6 6 6 6 6 6 6 6 6
Roll Length m 300 200 150 100 100 100 80 80 50 50

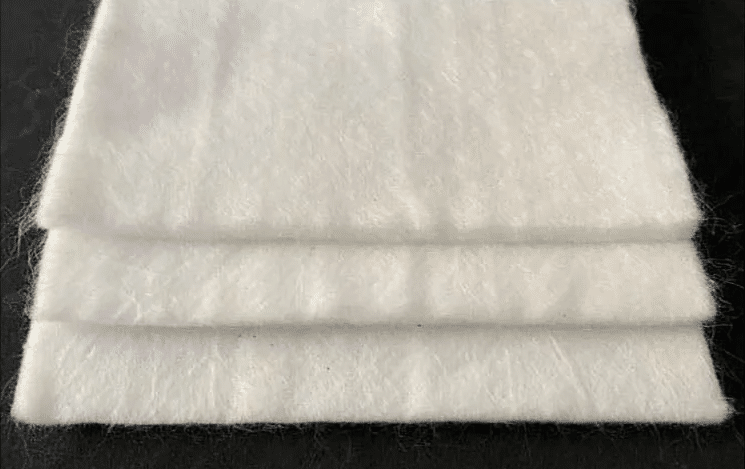

Filament Nonwoven Geotextile

Filament nonwoven geotextile is a high-performance synthetic fabric engineered by entangling endless polyester (PET) or polypropylene (PP) filaments through needle-punching or thermal bonding processes. Unlike short-fiber geotextiles, its continuous filament structure ensures superior tensile strength, durability, and uniformity, making it ideal for demanding civil engineering, environmental, and infrastructure applications.
Key Features
Exceptional Tensile Strength: Resists elongation and deformation under heavy loads.
Uniform Structure: Ensures consistent filtration, drainage, and separation performance.
Puncture & Abrasion Resistance: Withstands harsh installation conditions and long-term mechanical stress.
Chemical & Biological Inertness: Resists degradation from soil chemicals, acids, alkalis, and microorganisms.
UV Stabilization: Optional treatment for extended outdoor exposure.
High Permeability: Allows efficient water flow while retaining fine soil particles.
